10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

Name: 10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine
Brand: ETON
Price: 33 USD

Brand Name : ETON

Model Number : RT-1

Certification : CE , ISO , CCC

Place of Origin : CHINA

MOQ : 1 unit

Price : USD 33,000.00

Payment Terms : T/T

Supply Ability : 50 Unit per mouth

Delivery Time : 15-30 days

Packaging Details : Vacuum wooden packing

Name : SMT Pick and Place Machine

Application : SMT Production Line

Condition : new

Mounting speed : 30000--35000 CPH

PCB size : 50*50---400*350mm

Model number : RT-1

Contact Now

Factory prize electronic products machinery pcb assembly machine

Main Details:

Model number	RT-1
Dimension	120019301750mm
PCB
PCB size	5050---400350mm
PCB thickness	0.1---6mm
Vision system
Mounting speed	30000--35000 CPH
Mounting mode	Group picking and separate placing, Separate picking and separate placing
CCD resolution	0.01mm
Feeders station	32
Nozzles	10
Mounting height	<=25mm
No of camera	2 sets of imported camera
Components space	0.2mm
XYZ axis drive way	Magnetic linear motor
Feeding way	Electric feeder with double motor

3M

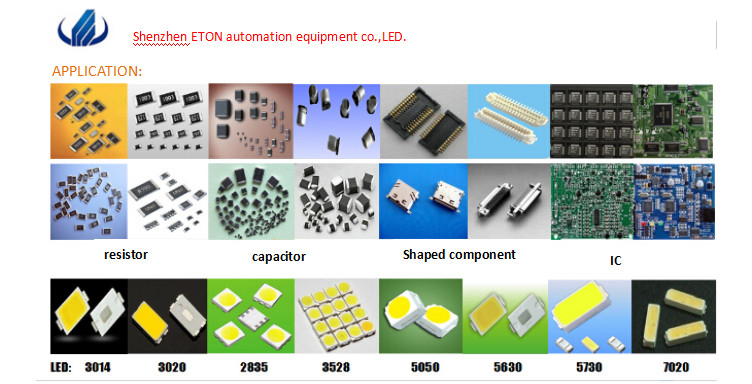

A.Mounting components:LED,capacitors,resistor,shaped components
10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

B.Main Features:

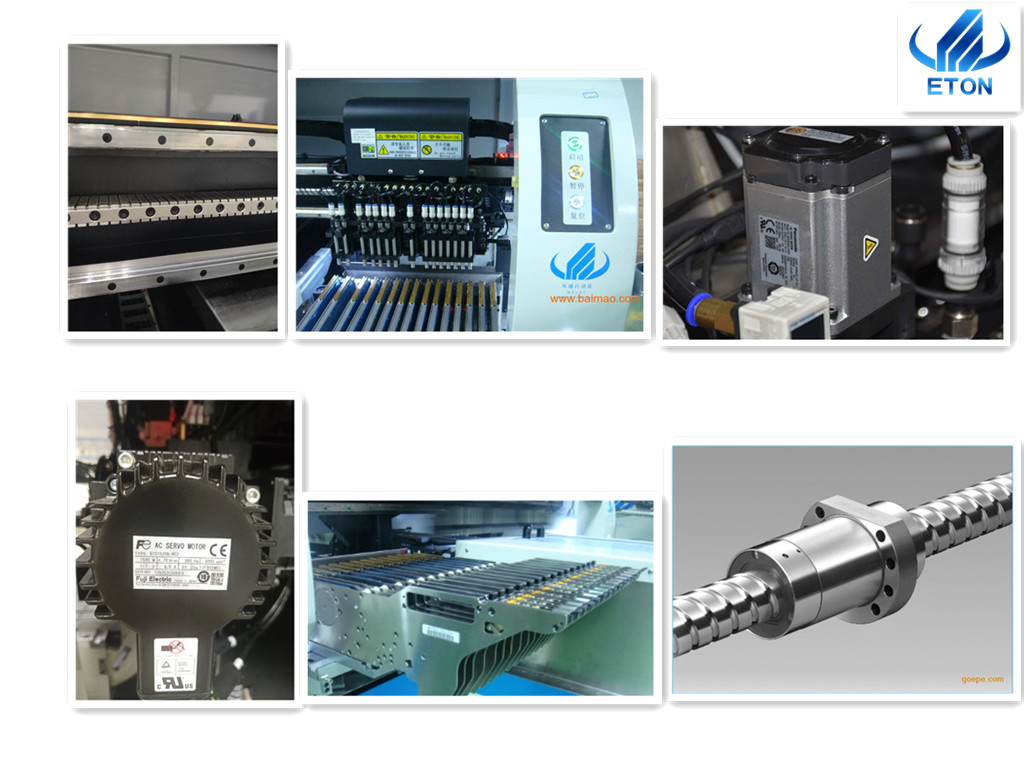

1. Control System: Ball screw and servo motors

2. Vision system: one down-looking camera. one CCD cameras and one HD camera.

3. 10 placement heads: can pick up and calibrate components at one time.

4. Up to 32 feeder stations: Standard feeder

5. computer main board: the monitor, key board and mouse will ship with machine.

6. Video tutor: make you operate machine easily

7. Free to upgrade software: and provide technology support for life.

10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

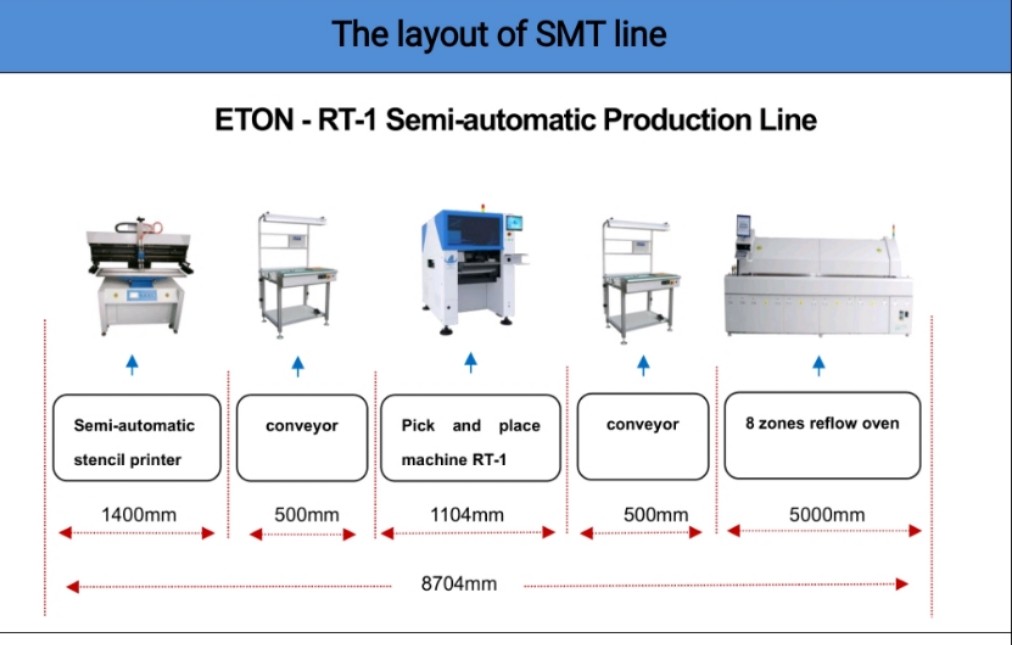

A whole SMT line:

Semi-automatic line and its fully automatic line scheme for you to choose

10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

Most customers’ choice:

10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

Who are we?
I am your dear friend. ETON
( Shenzhen ETON automation equipment CO.,LTD.)
10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

Certificate show:

================================================
Contact me:
Shenzhen ETON Automation Equipment Co., Ltd.
Lomoxi /Sales Specialist
Add:Floor 3, Building B1, Kentuo Internet Creative park, Yongyue Road, Fuyong, Boan District, Shenzhen
Email:et81@eton-mounter.com
Tel: 13828814025
