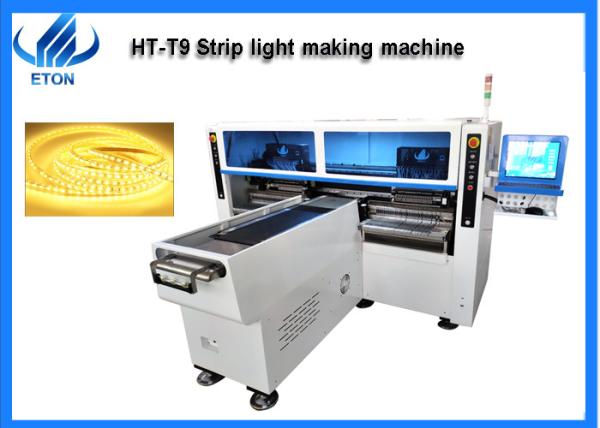

0.02mm Precision 35000CPH 8KW Pick And Place Machine

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

0.02mm Precision 35000CPH 8KW Pick And Place Machine

Brand Name : ETON

Model Number : HT-T9

Certification : CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 pcs

Packaging Details : Wooden case

Name : pick and place machine

Module : HT-T9

Apply to : Any length of flexible strip light

Warranty : 1 year

Feeder : 68 pcs

Nozzles : 68 pcs

Contact Now

Pick and place SMT production line strip light 15 M

Strip light machine

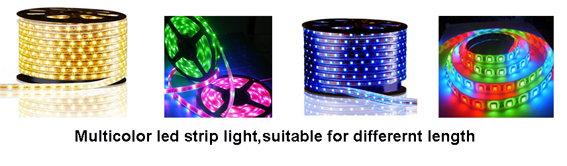

For flexible strip light, there are 0.5m, 1m, 2m, 5m, 10m, 15m, 25m,50m etc. For T9, it is suitable for making 5m, 10m,15m or more length strip light. Otherwise, we can provide the whole SMT line machines for you. This line is rich experience and will be have high capacity for you.

Features

  1. Calibration automatically, high precision, available for RGB. Multi-color strip light.
  2. Producing with 4 types materials at the same time with high capacity, suitable for 5m, 50m or any length of flexible strip and roll to roll.

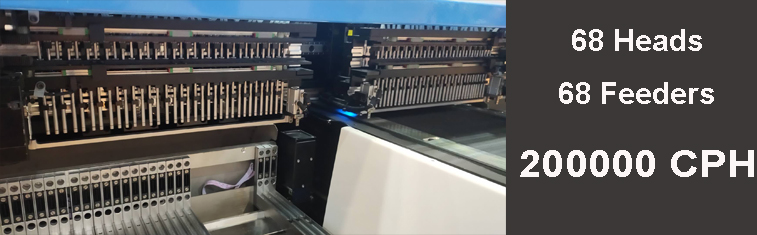

  3. 68 feeders and 68 nozzles, mounting speed reach 200000 cph.

Main parts show

  1. Computer: system is wondows7, touch screen monitor, software is Reach by ourselves.
  2. Mounting heads: dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  3. PCB Conveyor: Adjustable pressure pneumatic, machine clamping automatically with more easy to produce strip light.

0.02mm Precision 35000CPH 8KW Pick And Place Machine

Parameter

Length 3100 mm
Width 2300 mm
Height 1550 mm
Total Weight 1700 kg
No.of camera 5 pcs digital camera
Mounting element height ≦5mm
Operating environment 23±3 °c
Transmission Direction Single(left to right or right to left)

Products show

Here are the machine pictures and factory pictures

0.02mm Precision 35000CPH 8KW Pick And Place Machine
