HT-F9 68 feeders 6KW 200000 CPH Led Pcb Making Machine

Shenzhen Eton Automation Equipment Co., Ltd.
Contact Now

HT-F9 68 feeders 6KW 200000 CPH Led Pcb Making Machine

Brand Name : ETON

Model Number : HT-F9

Certification : CCC

Place of Origin : China

MOQ : 1

Packaging Details : Wooden case

Name : pick and place machine

Application : Led lighting and electrical board

Capacity : 200000 CPH

Brand : ETON

Components : LED, resistor, capacitor,ic,shaped components.

Warranty : 1 year

Contact Now

Pick and placement machine smt led pcb making machine

Pick and placement machine

Pick and placement machine also called smt machine, chip mounter, placement machine. It is function is using heads and picking the components, like the common led chip, ic, capacitor, etc and placement in pcb, our pick and place machine is totally automatically.

Machine features

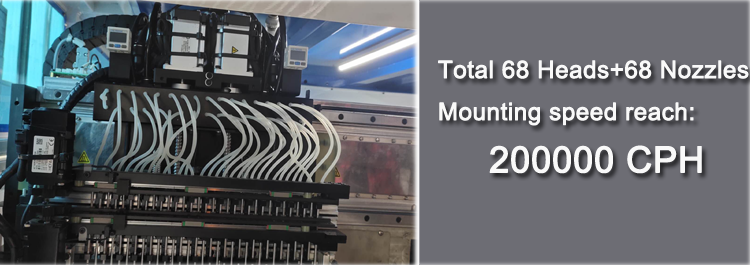

HT-F9 is fastest led pick and place machine in China, HT-F9 is new upgrade base on the old module HT-F7,there are 68 heads and 68 feeder station, adopt group picking and group mounting, it’s speed can be reach 200000 CPH.

Machine parameter

Here are F9 parameters

From Dimension:

2700*2300*1550 mm

From PCB Sizes:

Max PCB size is 1200*330 mm

Min PCB size is 100*100 mm

From Operating system:

Windows7 system, R&D software, Touch screen monitor.

From speed:

68 feeders and 68 nozzles, 200000 cph

HT-F9 68 feeders 6KW 200000 CPH Led Pcb Making Machine

If you want to have much machine parameter, please sent our inquiry.

Led lighting products show

F9 apply to 1.2m tube, 0.5m or 1m strip light, normal panel light, etc. Here are some products picture show.

HT-F9 68 feeders 6KW 200000 CPH Led Pcb Making Machine

Related machine show

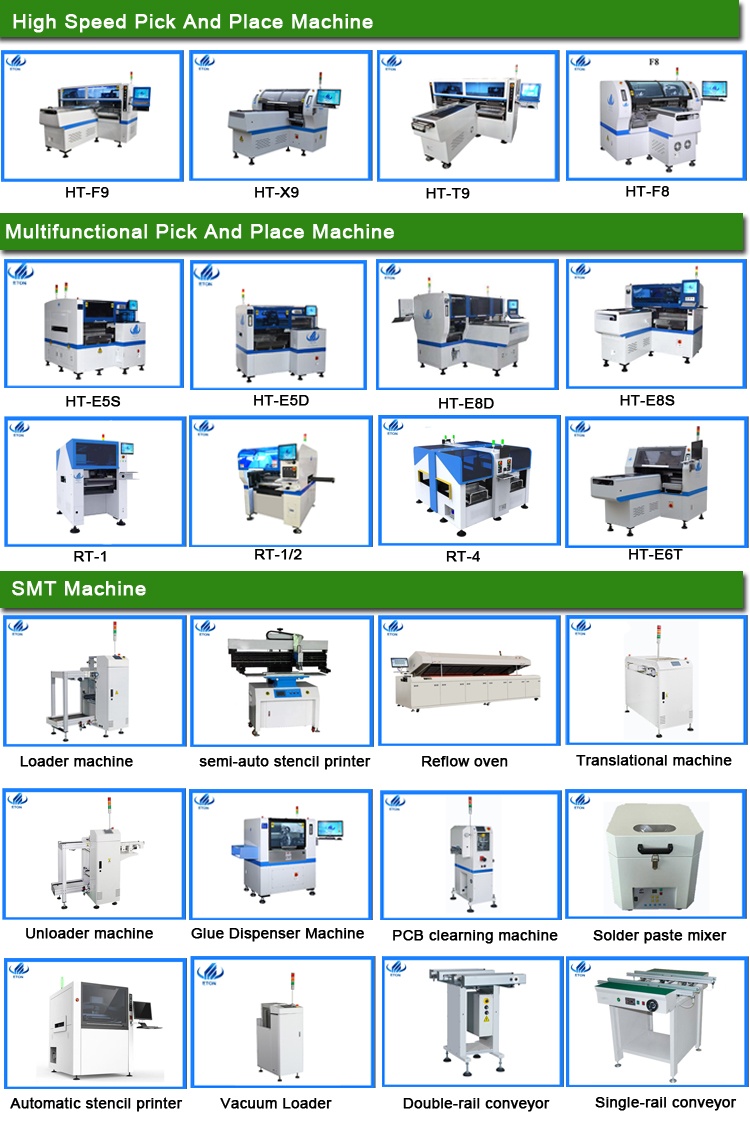

In the smt line, there are not only one pick and place machine, also other related machines, like the stencil printer, dispenser, reflow oven, etc. Here are the related machine show:

HT-F9 68 feeders 6KW 200000 CPH Led Pcb Making Machine

Free install and training

Someone might be want to ask will the machine is hard to using for normal workers? To be honest, our machine is really very easy to operate, usually several days for training is enough. If you buy our machine, we will sent engineer to your factory for free install and training.

Choose our machine, sent you free install and training!
